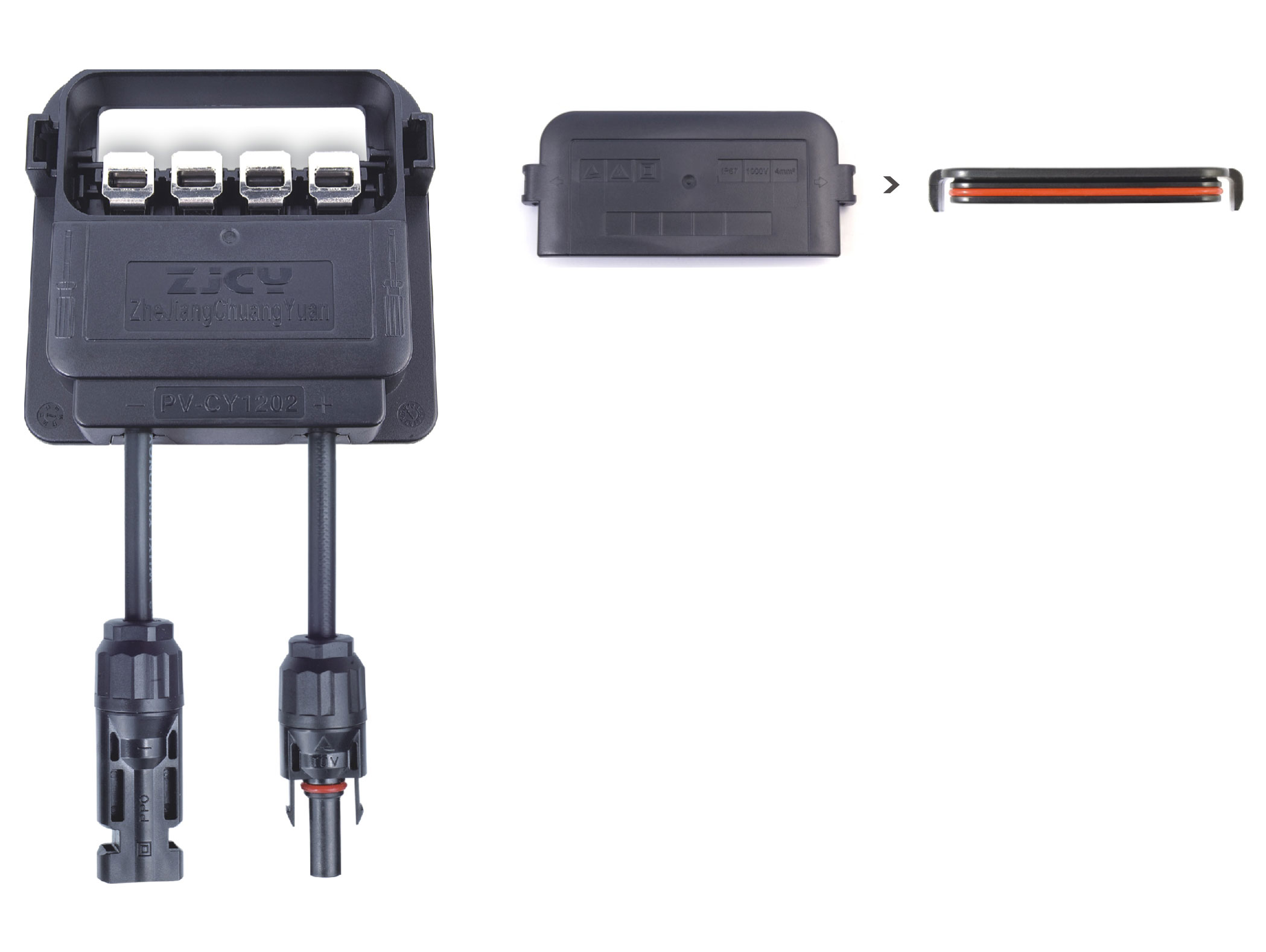

PV-CY1202

  • shoesincrease Elevated Shoes

  • PV-CY1202产品技术参数

    Certifications/认证

    TUV

    UL

    Certificate No./证书号码

    R50229203

    E330411

    Rated Current/额定电流

    13A

    15A

    Rated Voltage/额定电压

    1000VDC

    600VDC

    Temperature Range/温度范围

    -40℃～+85℃

    Safety Class/安全等级

    Class II/ II级

    Protection Degree/防护等级

    IP65

    Wire Size Range/线缆尺寸范围

    4mm2

    12AWG

    Flase Resistance/阻燃等级

    5VA

    Contact Resistance/接触电阻

    ≤5mΩ

    Waterproofing Structure/防水结构

    Seal/密封圈

    Volume of Sillcon Gel/灌胶量

    25g/25克

    Width of Copper Ribbons/焊带宽度

    Up to 8mm/最大8mm

    Connection Method/连接方式

    Spring Clamping/弹簧夹紧

    Insulation Material/绝缘材料

    PPO

    Contact Material/接触材料

    Copper alloy,tin plated/铜合金，镀锡

    Overall Dimension/外形尺寸

    95×95×20mm

    Optional Connector/可选连接器

    PV-CY01L,MC4

    UK AAA omega replica watches are equipped with Swiss movements. You can possess the cheap fake watches from online stores.
    Wholesale fake watches UK here are at affordable prices.
    2023 UK best replica watches can be found here.

     repliche orologi



    Product Family/产品族

    Product number
    产品型号

    Rated Current
    额定电流

    Circuit
    电路

    Distance between
    the terminals
    端子间距

    No. of diode
    二极管数量

    Diode type
    二极管型号

    Certifications
    认证

    PV-CY1202

    15A

    16mm

    3

    15SQ045

    TUV&UL
