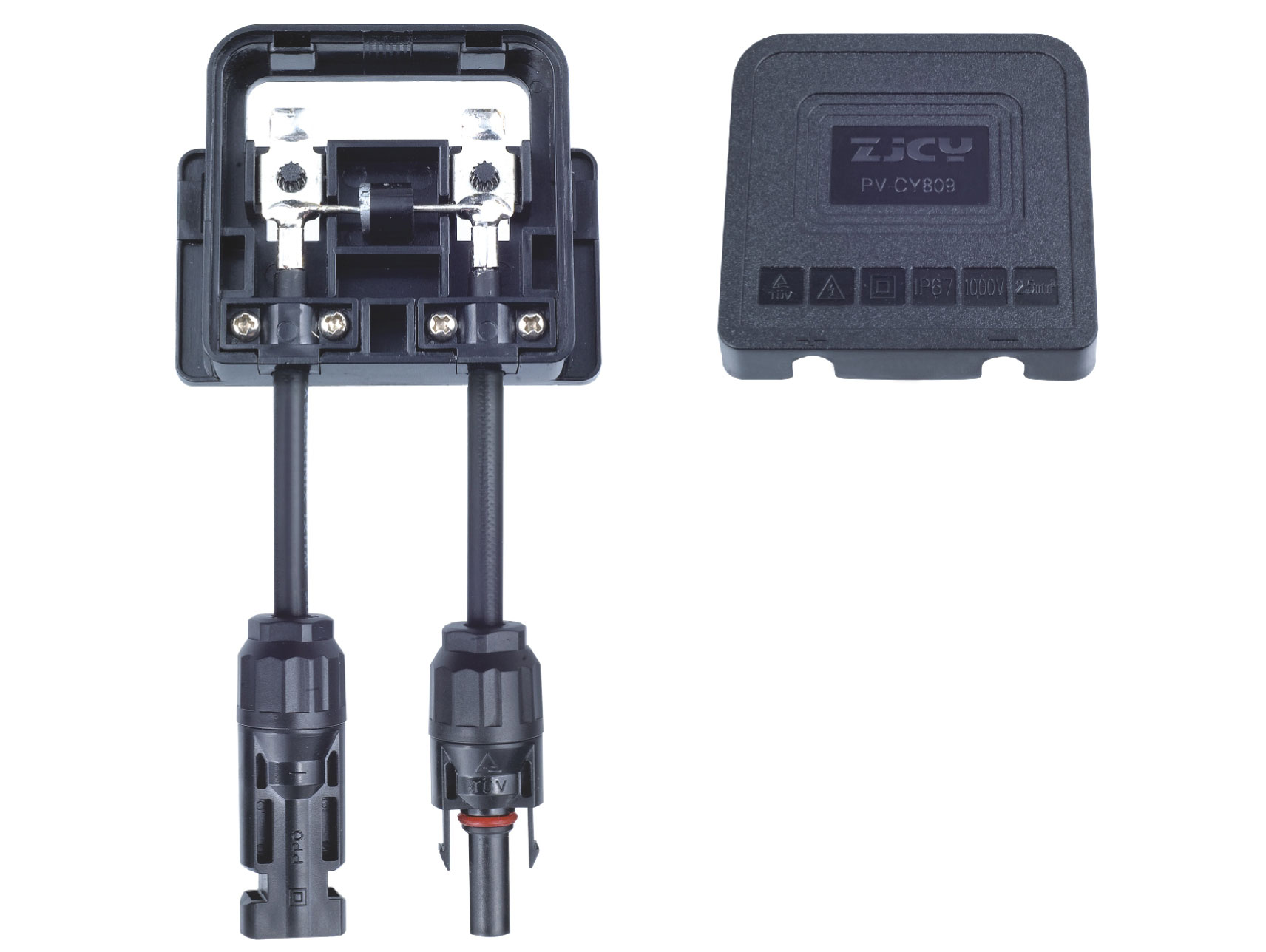

PV-CY809

  • https://panerai-rep.techbutts.com/

  • PV-CY809产品技术参数

    Certifications/认证

    TUV

    UL

    Certificate No./证书号码

    R50152126

    E330411

    Rated Current/额定电流

    6A

    6A

    Rated Voltage/额定电压

    1000VDC

    600VDC

    Temperature Range/温度范围

    -40℃～+85℃

    Safety Class/安全等级

    Class II/ II级

    Protection Degree/防护等级

    IP65

    Wire Size Range/线缆尺寸范围

    2.5mm2

    14AWG

    Flase Resistance/阻燃等级

    5VA

    Contact Resistance/接触电阻

    ≤5mΩ

    Waterproofing Structure/防水结构

    Need potting silica gel/硅胶密封

    Volume of Sillcon Gel/灌胶量

    29g/29克

    Width of Copper Ribbons/焊带宽度

    Up to 6mm/最大6mm

    Connection Method/连接方式

    Welding/焊接

    Insulation Material/绝缘材料

    PPO

    Contact Material/接触材料

    Copper alloy,tin plated/铜合金，镀锡

    Overall Dimension/外形尺寸

    69.8×58.1×17mm

    Optional Connector/可选连接器

    PV-CY01L,MC4

    Top breitling replica watches UK online with practical functions for female and male watch wearers.
    Do not miss UK perfect fake watches on the reliable website!
    Official AAA replica watches UK are selling at a low price. You can find quality fake watches here.

     imitacion breitling

    Product Family/产品族

    Product number
    产品型号

    Rated Current
    额定电流

    Circuit
    电路

    Distance between
    the terminals
    端子间距

    No. of diode
    二极管数量

    Diode type
    二极管型号

    Certifications
    认证

    PV-CY809

    6A

    31.3mm

    1

    10A10

    TUV & UL

  •
