PV-CY801
- TUV CertificateClick to download
- UL CertificateClick to download
- Patent CertificateClick to download
-
-
PV-CY801产品技术参数
Certifications/认证
TUV
UL
Certificate No./证书号码
R50133917
E330411
Rated Current/额定电流
8A
Rated Voltage/额定电压
1000VDC
600VDC
Temperature Range/温度范围
-40℃～+85℃
Safety Class/安全等级
Class II/ II级
Protection Degree/防护等级
IP67
IP65
Wire Size Range/线缆尺寸范围
4mm2
12AWG
Flase Resistance/阻燃等级
5VA
Contact Resistance/接触电阻
≤5mΩ
Waterproofing Structure/防水结构
Seal/密封圈
Volume of Sillcon Gel/灌胶量
N/A/不适用
Width of Copper Ribbons/焊带宽度
Up to 6mm/最大6mm
Connection Method/连接方式
Spring Clamping/弹簧夹紧
Insulation Material/绝缘材料
PPO
Contact Material/接触材料
Copper alloy,tin plated/铜合金，镀锡

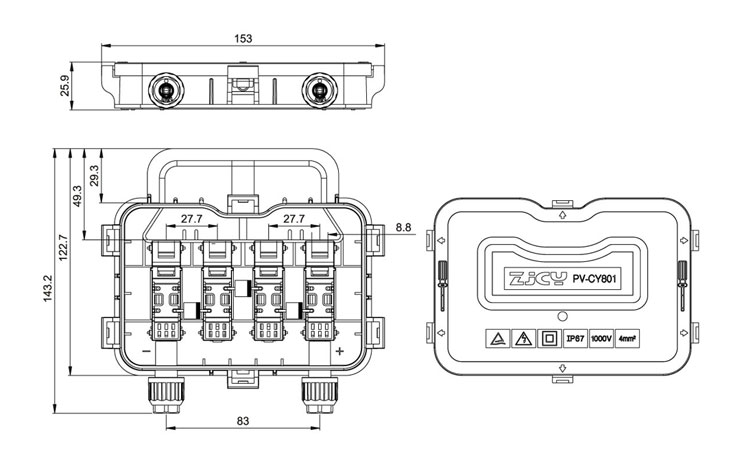

Overall Dimension/外形尺寸
151.4×122.7×25.5mm
Optional Connector/可选连接器
PV-CY01L,MC4
AAA perfect UK replica watches at affordable prices can be found from this website.
Here, you can buy 2023 top replica watches UK with high quality.
With Swiss reliable movements, AAA UK replica omega watches have high quality.Product Family/产品族
Product number
产品型号Rated Current
额定电流Circuit
电路Distance between
the terminals
端子间距No. of diode
二极管数量Diode type
二极管型号Certifications
认证PV-CY801
8A
27.7mm
3
12SQ045
TUV&UL
