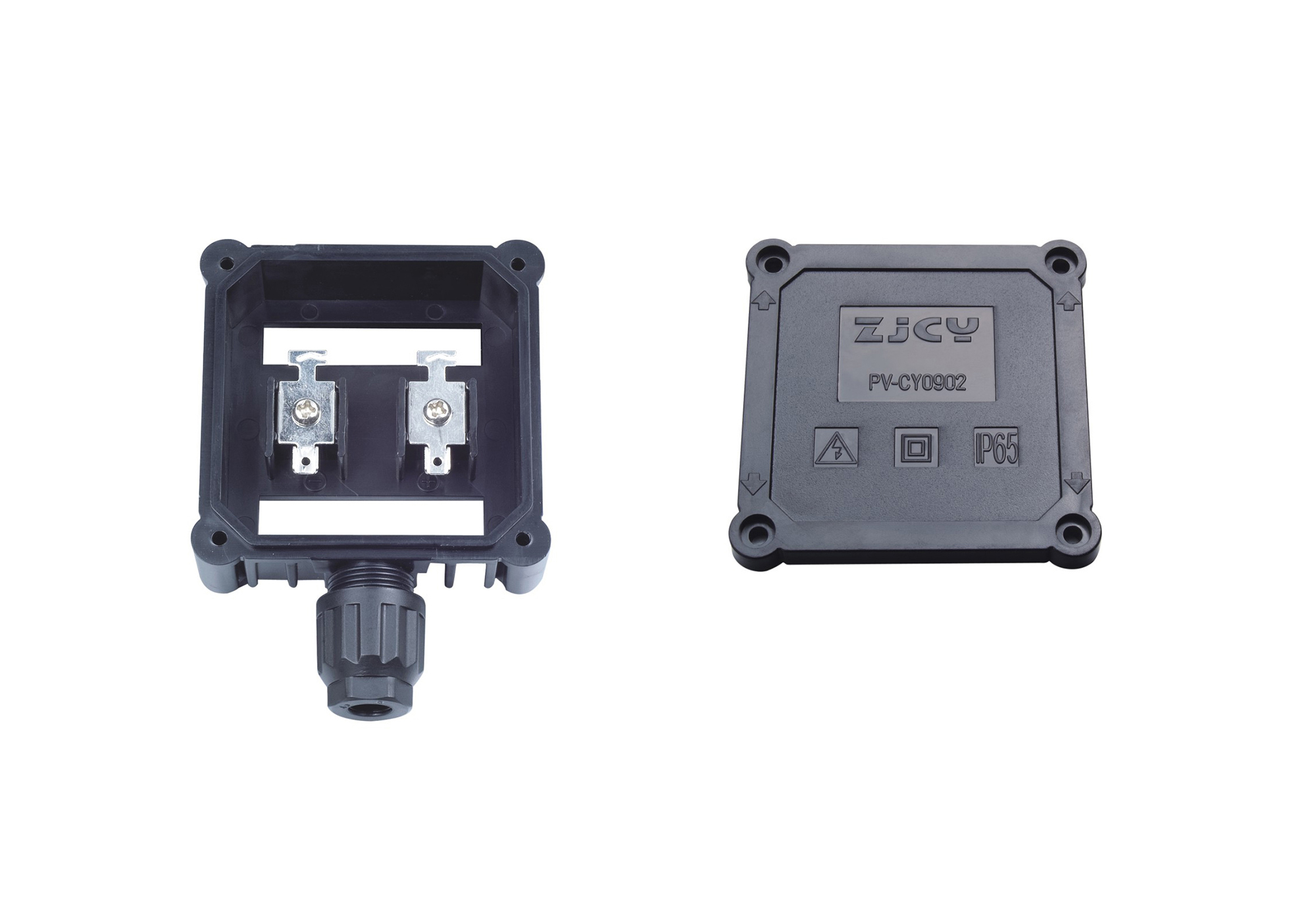

PV-CY902产品技术参数
Type/型号
PV-CY902
Rated Current/额定电流
4A
Rated Voltage/额定电压
1000VDC
Temperature Range/温度范围
-40℃~+85℃
Safety Class/安全等级
Class II/ II级
Protection Degree/防护等级
IP65
Wire Size Range/线缆尺寸范围
2×1mm2
Flase Resistance/阻燃等级
5VA
Contact Resistance/接触电阻
≤5mΩ
Waterproofing Structure/防水结构
Seal/密封圈
Volume of Sillcon Gel/灌胶量
N/A/不适用
Width of Copper Ribbons/焊带宽度
Up to 6mm/最大6mm
Connection Method/连接方式
Welding/焊接
Insulation Material/绝缘材料
PPO
Contact Material/接触材料
Copper alloy,tin plated/铜合金,镀锡
Overall Dimension/外形尺寸
59.5×59.5×23mm
Optional Connector/可选连接器
PV-CY01L,MC4
Product Family/产品族
Product number
产品型号Rated Current
额定电流Circuit
电路Distance between
the terminals
端子间距No. of diode
二极管数量Diode type
二极管型号Certifications
认证PV-CY902
4A
23mm
1
可选
