PV-CY01L产品技术参数
Certifications/认证
TUV
UL
Certificate No./证书号码
R50133919
E342638
Rated Current/额定电流
30A/16A
20A
Rated Voltage/额定电压
1000VDC
600VDC & 1000VDC
Temperature Range/温度范围
-40℃~+85℃
Safety Class/安全等级
Class II/ II级
Protection Degree/防护等级
IP67
Wire Size Range/线缆尺寸范围
4mm2/2.5mm2
12AWG/14AWG
Flase Resistance/阻燃等级
5VA
Contact Resistance/接触电阻
≤1mΩ
Waterproofing Structure/防水结构
Seal/密封圈
Volume of Sillcon Gel/灌胶量
N/A/不适用
Width of Copper Ribbons/焊带宽度
N/A/不适用
Connection Method/连接方式
Spring Clamping/弹簧夹紧
Insulation Material/绝缘材料
PPO
Contact Material/接触材料
Copper alloy,tin plated/铜合金,镀锡

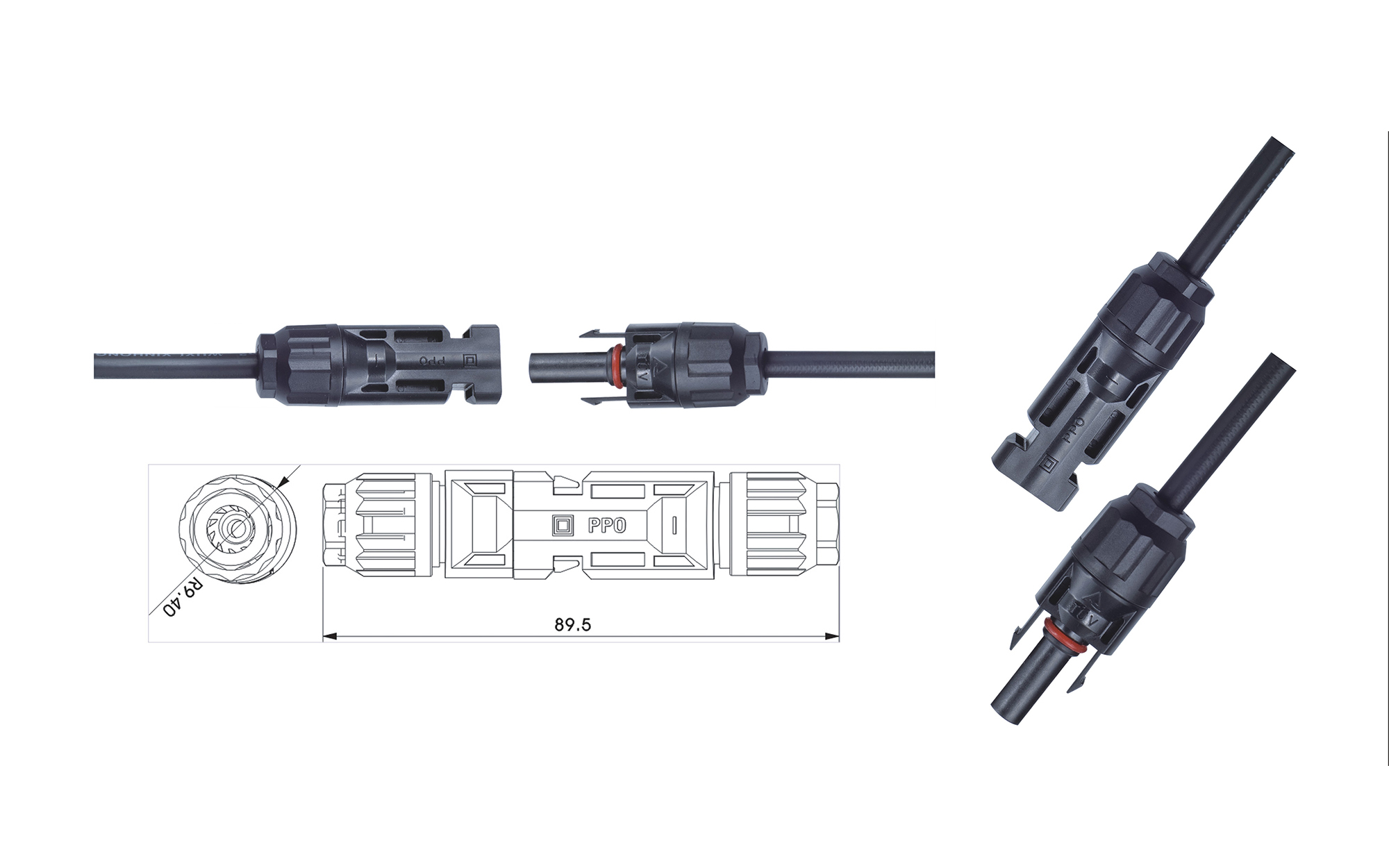

Overall Dimension/外形尺寸
89.5×Ф18.8mm
